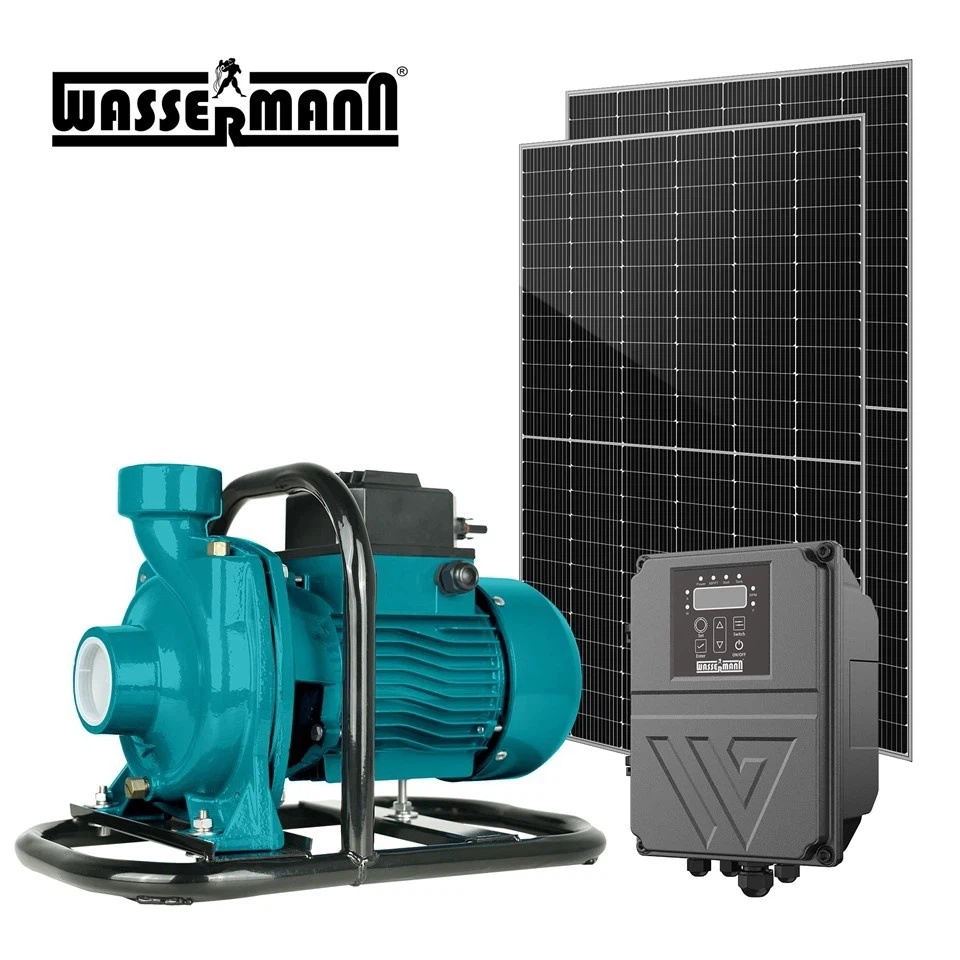

Solar Water Pump Solutions
Innovative Technology-leading Solar Pump Manufacturer
Solar Pumps For Aquaculture & River Maintenance

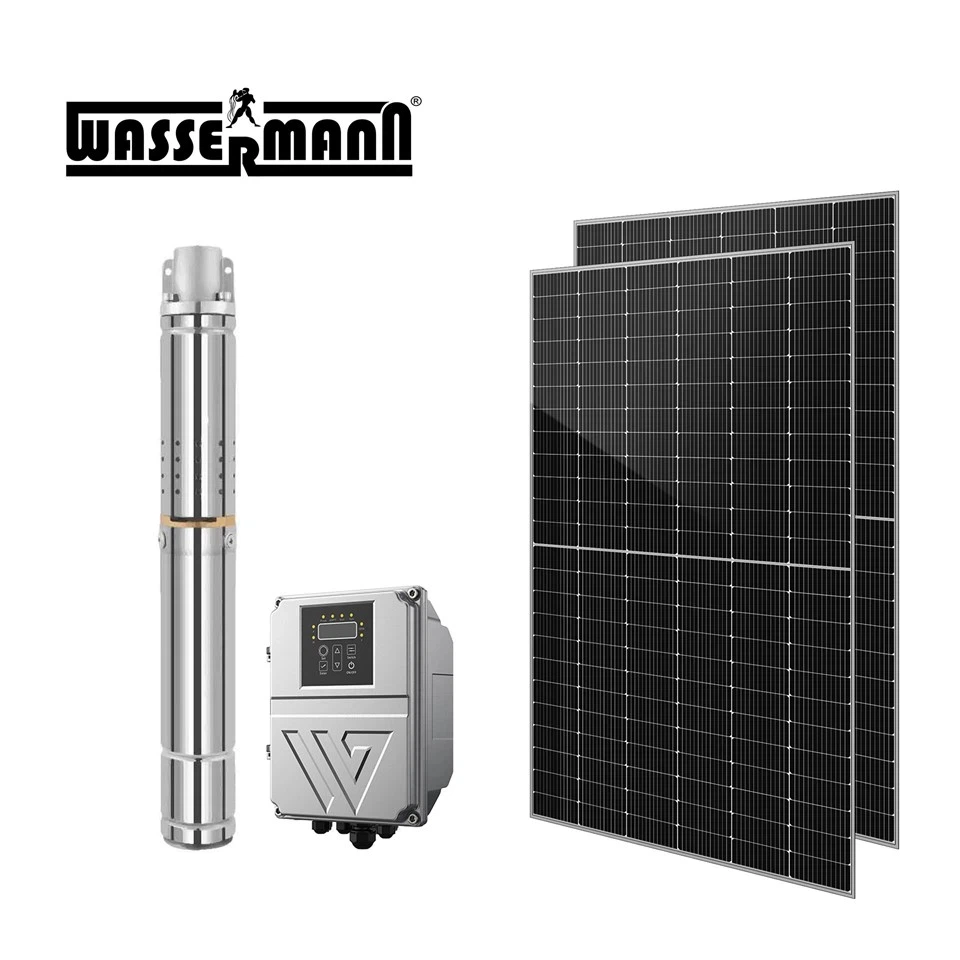

Advantages of Solar Submersible Pump Kits
Innovative Technology-leading Solar Water Pump Manufacturer
Advantages Of The Water Pump
● Permanent magnet DC brushless synchronous motor: the efficiency is increased by 15%-20%, saving energy consumption and reducing the consumption of solar panels.
● The entire 304 stainless steel rotor shaft avoids the risk of shaft breakage.
● 304 stainless steel or copper outlet, connection, cylinder.
● Japanese brand NSK bearing, longer working life.
● Double bearing structure at the bottom of the rotor, using angular contact bearings, can withstand greater axial pressure.
● Silicon carbide to impregnated graphite mechanical seal: longer working life and high reliability.
● The enameled wire adopts 180 °C high temperature resistant copper wire, and the insulation grade is F.
● Cold-rolled 600 silicon steel sheet stator and rotor.
● The magnet is made of 40SH aluminum iron boron material, with a temperature resistance of 150 °C.

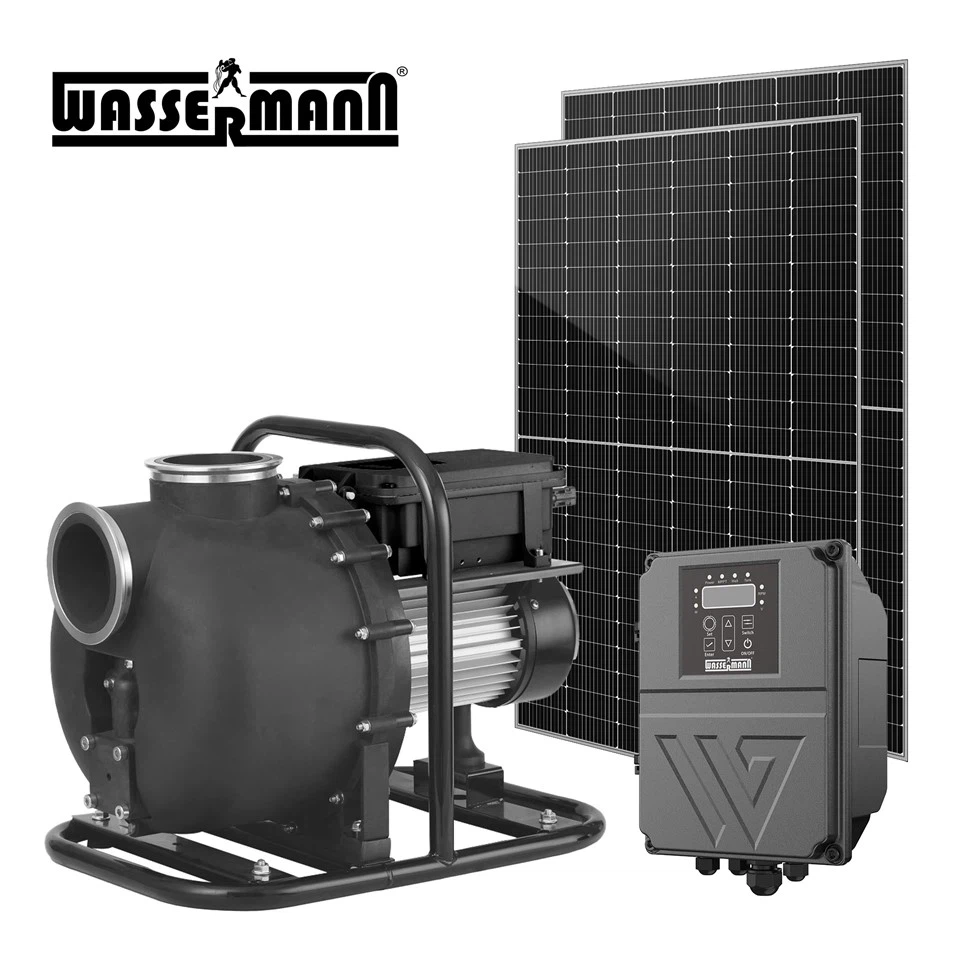

Advantages Of The Pump Controller
● Waterproof grade: IP65
● Wide open circuit voltage range
● Ambient temperature: -15°C~60°C
● Maximum input current: 17A
● MPPT function, the solar power utilization rate is higher.
● LED displays the power, voltage, current, speed and other working conditions.
● Automatically adjust the speed according to the power of sunlight, or manually change the speed according to the actual demand.
● Automatically start and stop working, no need for personnel to operate.
● Soft start: no impulse current, protect the pump motor.
● Protection functions such as overvoltage/undervoltage/overcurrent/phase loss/short circuit/water shortage/high temperature protection.

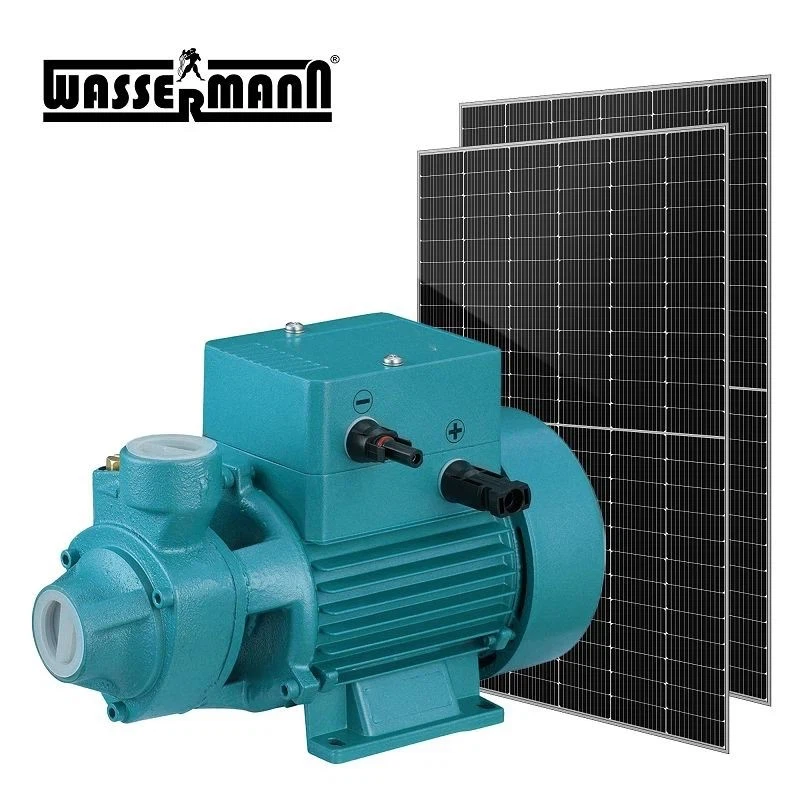

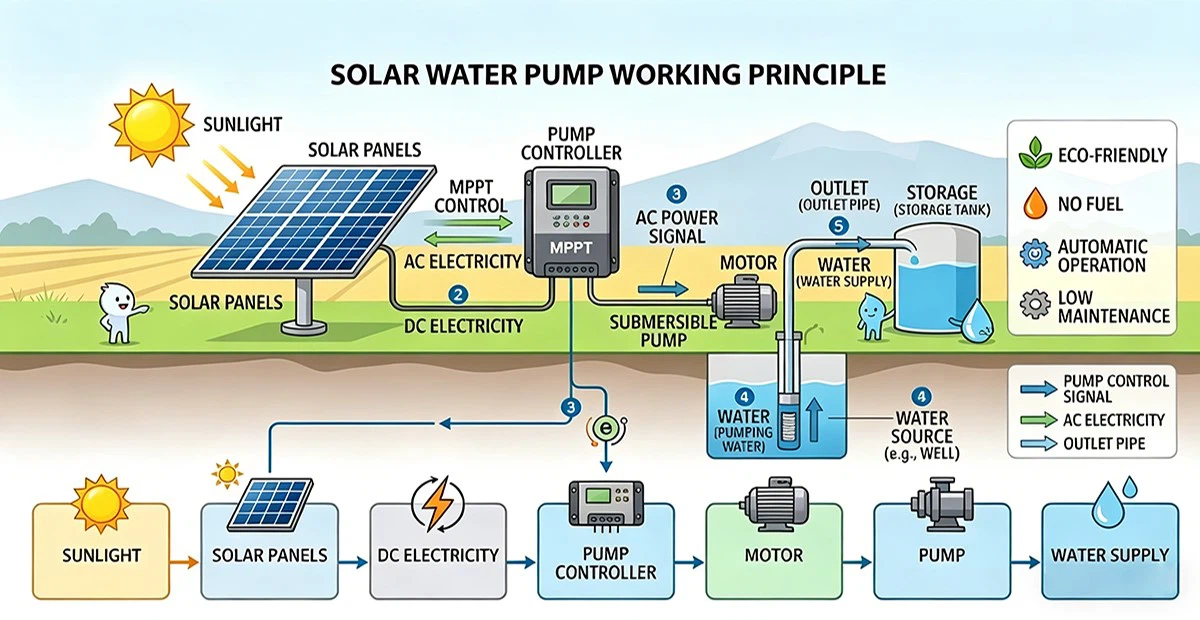

Working Principle of the Solar Water Pump
A solar water pump operates by utilizing the Photovoltaic effect to convert sunlight directly into electricity through solar panels. This generated Direct Current is then managed by a dedicated controller, which stabilizes the power and regulates the motor's operation. The motor drives the pump's mechanical components to create the necessary pressure to draw water from a source-such as a well or reservoir-and deliver it to its destination, effectively providing a sustainable water solution without relying on the power grid or fossil fuels.

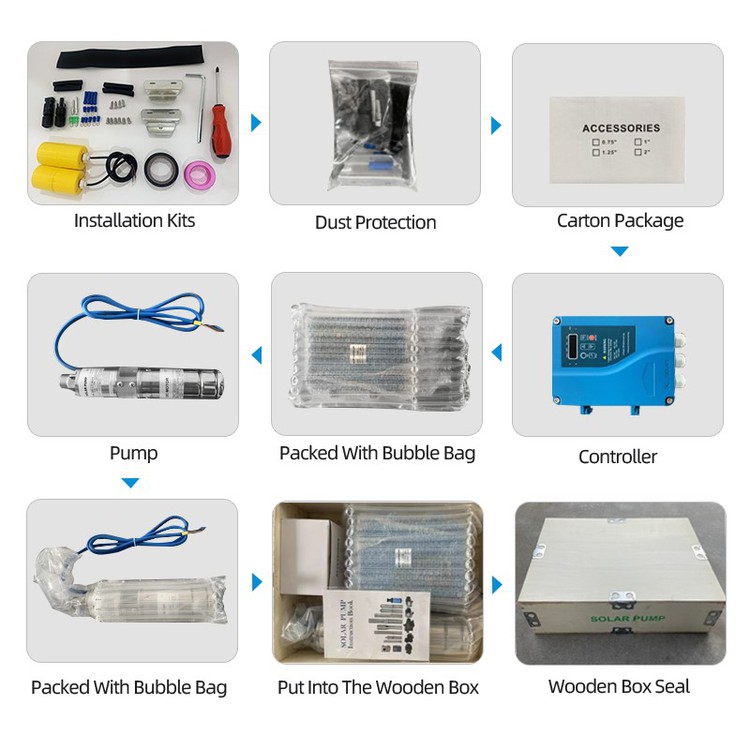

Packaging And Transportation
in electric pump industry

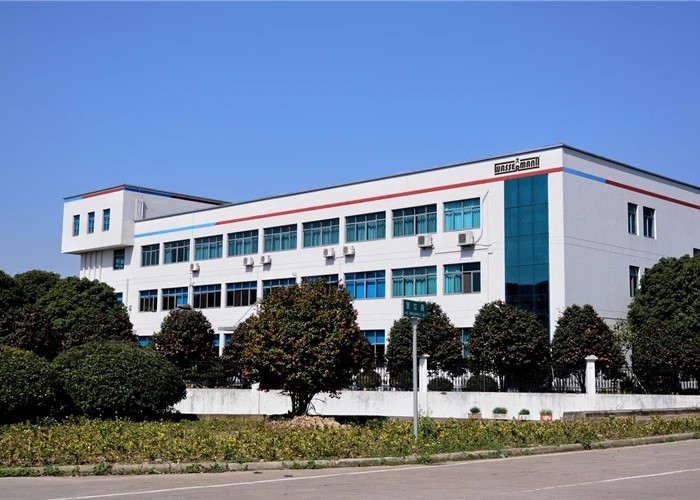

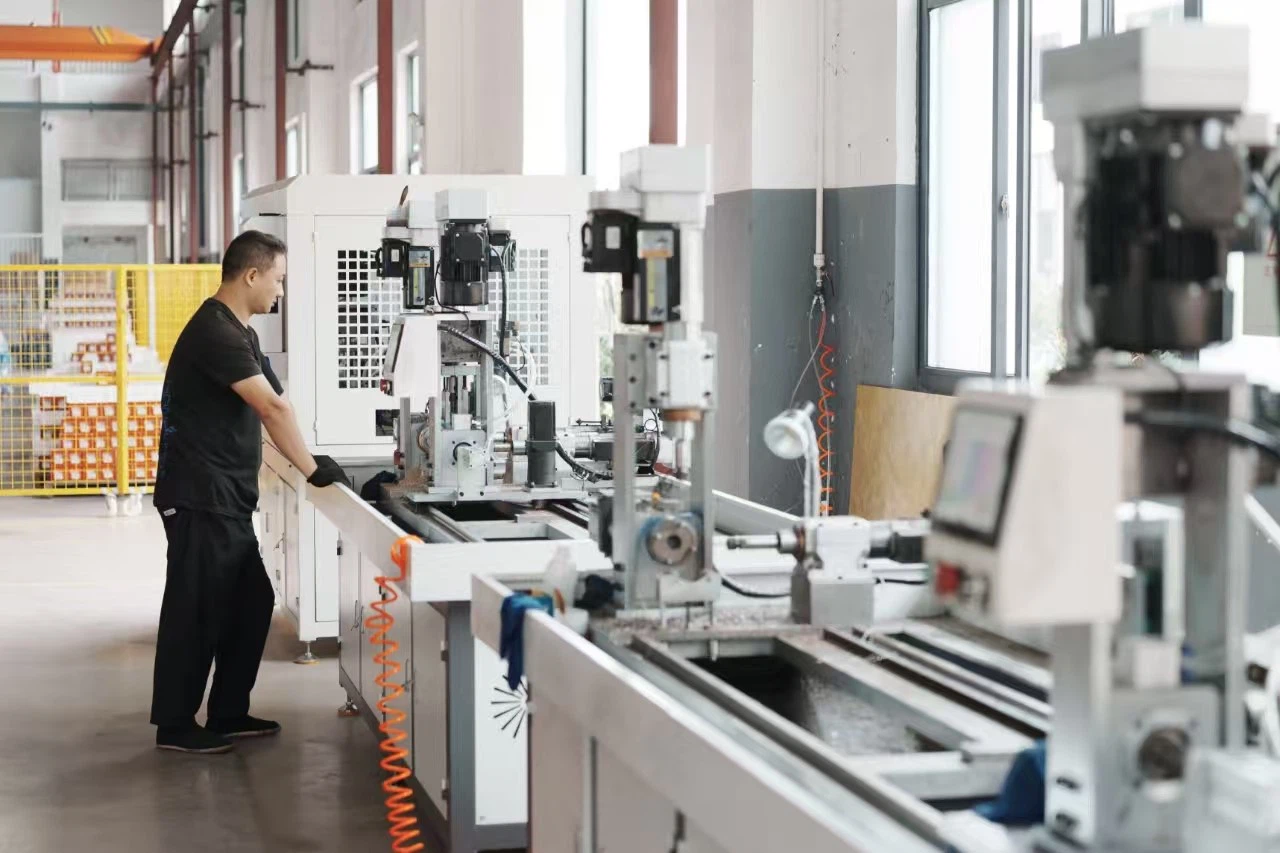

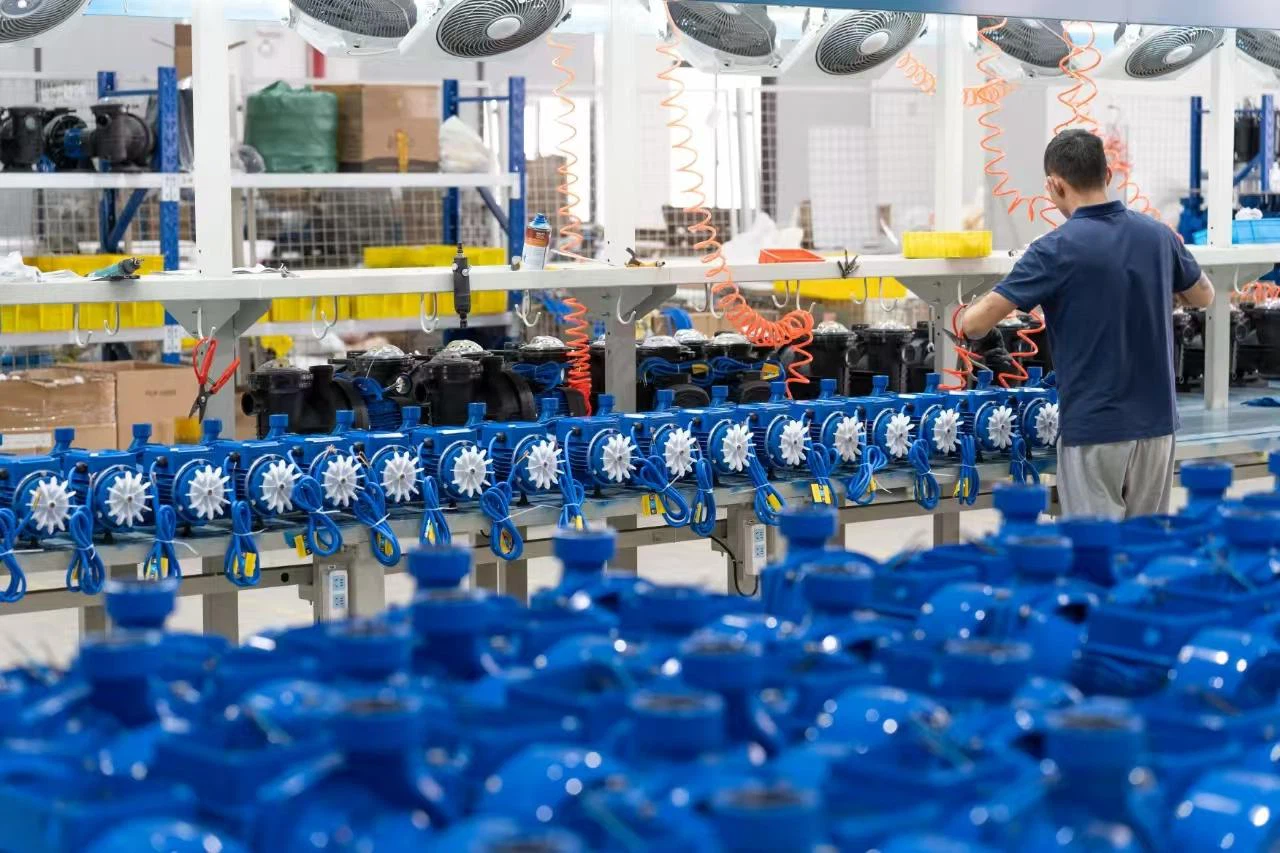

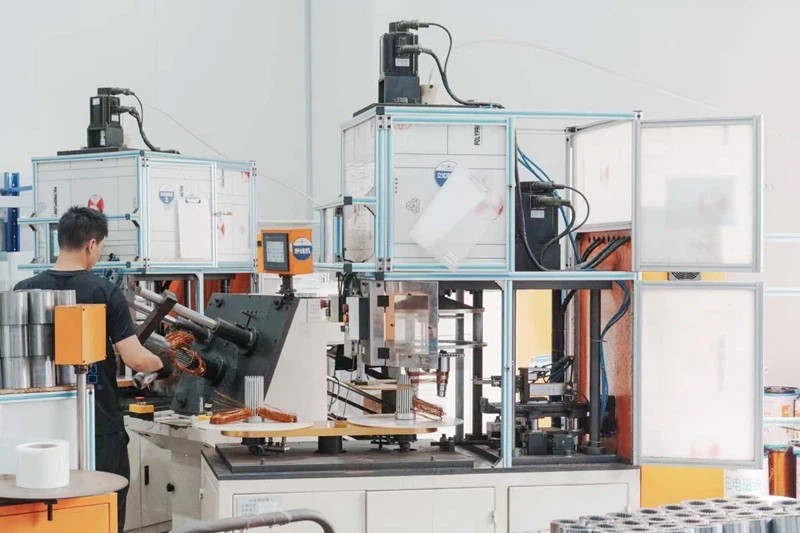

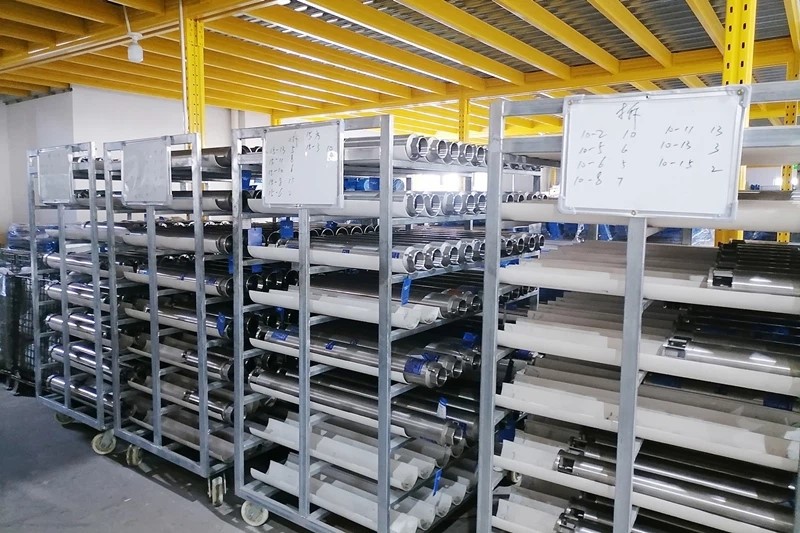

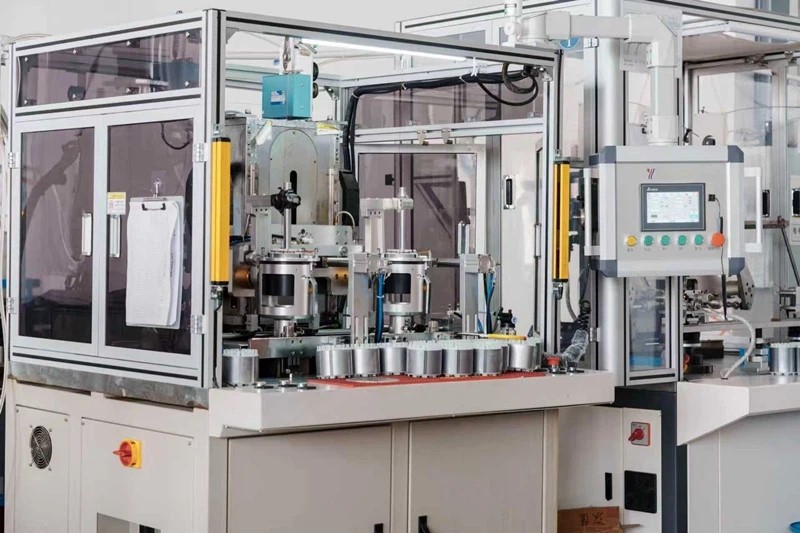

WASSERMANN has been operating in the electric pump industry for more than 20 years. It is a company that is committed to study, to develop, to manufacture and to industrialized pumping systems.
We offer to the customers a big and specific range of pumps for a large variety of uses: domestic applications, industrial fields, groundwater, waster water and sewage applications, for civil plants, building service sector, agricultural and irrigation applications, swimming pools and SPA baths.
Our products hold multiple certifications such as CE,UL,CB etc.., underscoring our commitment to quality and industry standards. We have a strong global presence, exporting to Europe, North America, South America, Southeast Asia, Africa, the Mid East and Eastern Asia, ensuring prompt delivery and excellent customer service.
Why Customers Choose Us
After Sales Service
We offer warranty 24 months.
Fast Delivery
30-40 days production time for OEM orders.
Competitive Price
We supply expected quality pumps at competitve prices.
OEM Avaliable
We accept OEM for any quantity.
