Product Introduction

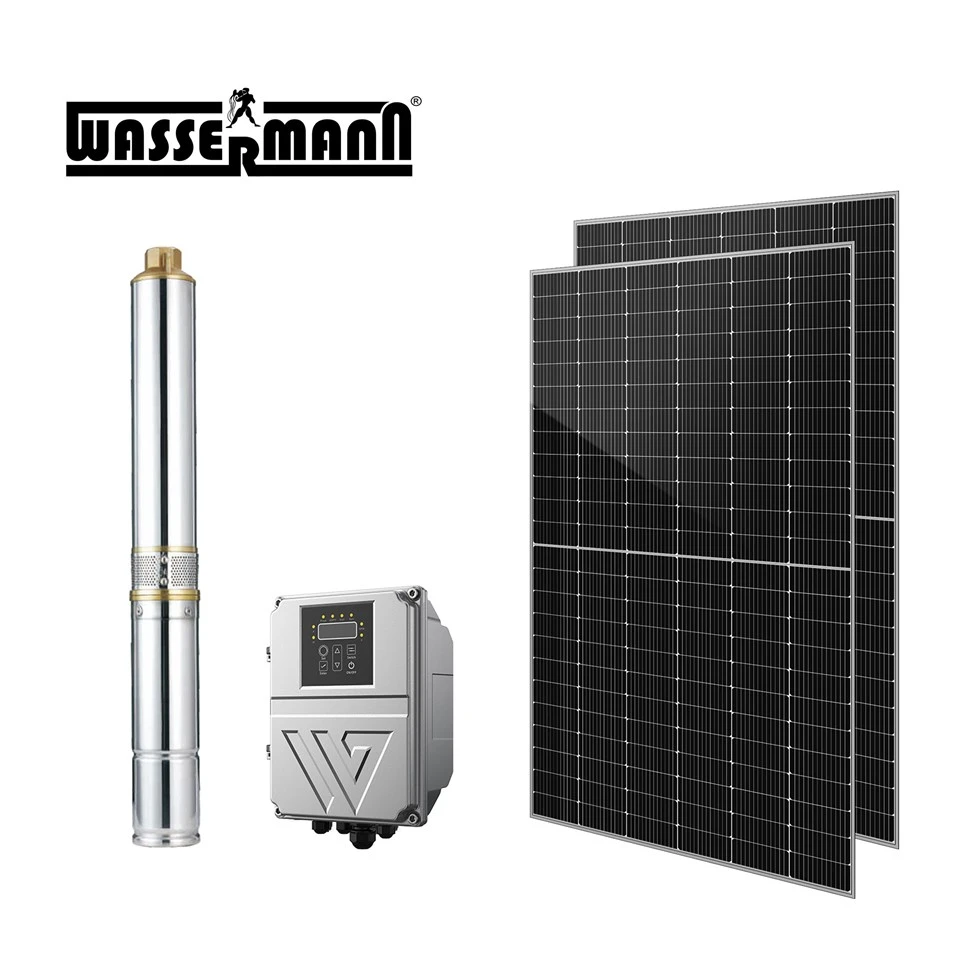

The 4" DC built-In plastic impeller solar pump is a submersible deep-well pump with a diameter of approximately 96 mm, specifically designed for off-grid water supply applications requiring higher flow rates and greater efficiency. Compared to the 3-inch model, it features significantly expanded specifications in terms of power range, flow rate, and head, making it capable of meeting the demands of medium-scale farm irrigation, centralized water supply projects, and commercial water usage.
4BSQJ Performance Data
|
No. |
Pump |
Controller |
Solar Panels |
||||||
|
WASSERMANN CODE |
Q.max (m³/h) |
Motor power (HP) |
Outlet |
Stages |
Drive Type |
Power(KW) |
VOC Range (V) |
||
|
11 |
4BSQJ3-35-38-300 |
3 |
0.4 |
1.5" |
5 |
Built-in |
0.3 |
20-100V |
|
|
12 |
4BSQJ3.5-75-76-600 |
3.5 |
0.8 |
1.5" |
8 |
Built-in |
0.6 |
22-150V |
|
|
13 |
4BSQJ3.7-115-114-750 |
3.7 |
1 |
1.5" |
10 |
Built-in |
0.75 |
22-150V |
|
|
14 |
4BSQJ3.7-180-152-1100 |
3.7 |
1.5 |
1.5" |
14 |
Built-in |
1.1 |
22-200V |
|
|
15 |
4BSQJ6.3-50-76-600 |
6.3 |
0.8 |
1.5" |
6 |
Built-in |
0.6 |
22-150V |
|
|
16 |
4BSQJ6.5-70-114-750 |
6.5 |
1 |
1.5" |
8 |
Built-in |
0.75 |
22-150V |
|
|
17 |
4BSQJ6.5-105-152-1100 |
6.5 |
1.5 |
1.5" |
11 |
Built-in |
1.1 |
22-200V |
|
|
18 |
4BSQJ7.5-125-228-1500 |
7.5 |
2.2 |
1.5" |
12 |
Built-in |
1.5 |
45-430V |
|
|
19 |
4BSQJ7-185-304-2200 |
7 |
3 |
1.5" |
16 |
Built-in |
2.2 |
45-430V |
|
|
20 |
4BSQJ8-150-304-2200 |
8 |
3 |
1.5" |
15 |
Built-in |
2.2 |
45-430V |
|
|
21 |
4BSQJ12-130-304-2200 |
12 |
3 |
1.5" |
10 |
Built-in |
2.2 |
45-430V |
|
Free Accessories
Packaging
Features
• Magnet brushless motor. Simple installation and reduced maintenance
• Using photovoltaic modules or DC power sources saves electricity costs and reduces emissions and noise.
• It has automatic tracking (MPPT) to provide stable water supply in different weather and seasonal lighting conditions.
• CE approved.
Advantage
• Built-in MPPT Controller
Integrating the MPPT controller directly into the pump body, this feature provides dry-run protection, automatic water level control, and optimized DC power supply capabilities, thereby significantly enhancing the system's level of intelligence.
• High-Efficiency Permanent Magnet Brushless Motor
Utilizing a permanent magnet brushless DC synchronous motor, paired with high-precision bearings and mechanical seals-this unit achieves an efficiency increase of over 20% compared to traditional motors, while offering quieter operation and a longer service life.
Application Scenarios
FAQ
Should my water pump have a plastic or metal impeller?
The choice between a plastic or metal impeller depends primarily on your water quality conditions and specific operating environment.
Plastic impellers offer the advantages of being lightweight, corrosion-resistant, and cost-effective. They typically deliver excellent performance in clean-water applications, such as residential water supply, garden irrigation, or low-pressure systems.
In contrast, metal impellers boast significantly greater durability and wear resistance, making them the ideal choice for pumping water containing sand, silt, or other harsh impurities.
