Product Introduction

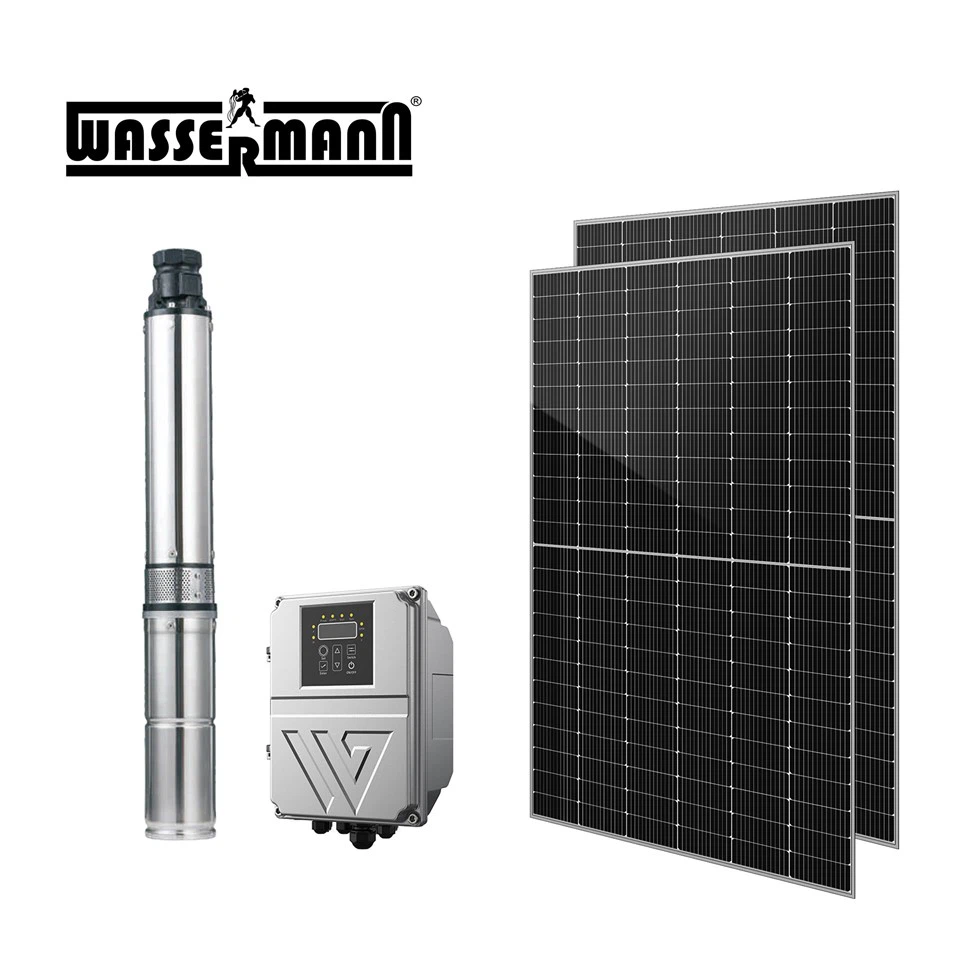

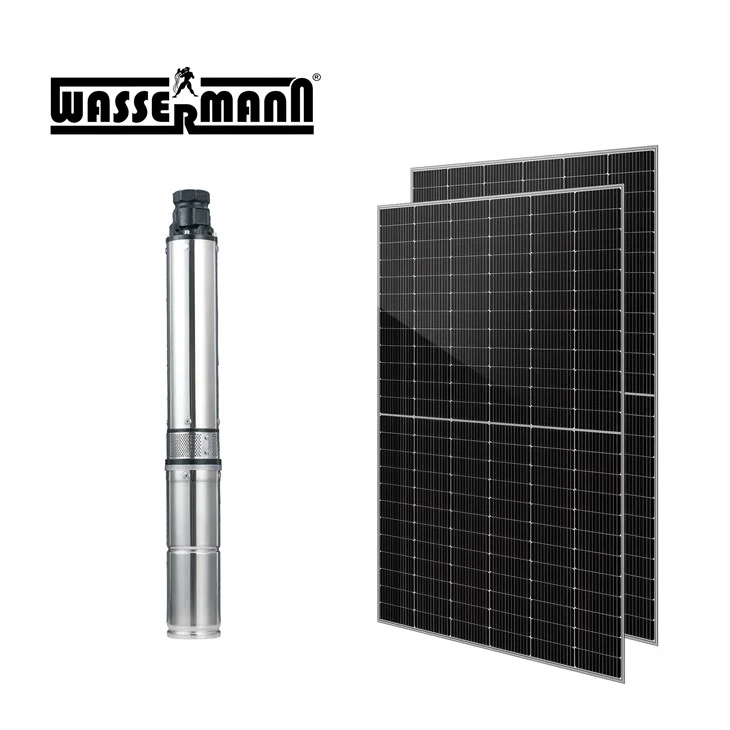

A solar powered deep well submersible pump is a water supply solution for off-grid areas that combines solar power generation with a deep-well submersible pump, making it particularly suitable for use in remote farmland, pastures, and mountainous regions. Requiring neither a power grid nor batteries, the system operates automatically under sunlight simply by connecting to solar panels, utilizing Maximum Power Point Tracking (MPPT) technology to adapt to fluctuating weather conditions and maximize efficiency.
4BSQJ-E Performance Data
|
No. |
Pump |
Controller |
Solar Panels |
||||||
|
WASSERMANN CODE |
Q.max (m³/h) |
Motor power (HP) |
Outlet |
Stages |
Drive Type |
Power(KW) |
VOC Range (V) |
||
|
54 |
4BSQJ-E3-35-38-300 |
3 |
0.4 |
1.5" |
5 |
Built-in |
0.3 |
20-100V |
|
|
55 |
4BSQJ-E3.5-75-76-600 |
3.5 |
0.8 |
1.5" |
8 |
Built-in |
0.6 |
22-150V |
|
|
56 |
4BSQJ-E3.7-115-114-750 |
3.7 |
1 |
1.5" |
10 |
Built-in |
0.75 |
22-150V |
|
|
57 |
4BSQJ-E3.7-180-152-1100 |
3.7 |
1.5 |
1.5" |
14 |
Built-in |
1.1 |
22-200V |
|
|
58 |
4BSQJ-E6.3-50-76-600 |
6.3 |
0.8 |
1.5" |
6 |
Built-in |
0.6 |
22-150V |
|
|
59 |
4BSQJ-E6.5-70-114-750 |
6.5 |
1 |
1.5" |
8 |
Built-in |
0.75 |
22-150V |
|
|
60 |
4BSQJ-E6.5-105-152-1100 |
6.5 |
1.5 |
1.5" |
11 |
Built-in |
1.1 |
22-200V |
|
|
61 |
4BSQJ-E7.5-125-228-1500 |
7.5 |
2.2 |
1.5" |
12 |
Built-in |
1.5 |
45-430V |
|
|
62 |
4BSQJ-E7-185-304-2200 |
7 |
3 |
1.5" |
16 |
Built-in |
2.2 |
45-430V |
|
|
63 |
4BSQJ-E8-150-304-2200 |
8 |
3 |
1.5" |
15 |
Built-in |
2.2 |
45-430V |
|
|
64 |
4BSQJ-E12-130-304-2200 |
12 |
3 |
1.5" |
10 |
Built-in |
2.2 |
45-430V |
|
Free Accessories
Packaging
Advantages
• High Head Capacity
Designed specifically for accessing deep groundwater, screw-type pumps within this range can achieve a lift of over 300 meters, while centrifugal impeller pumps can reach up to 200 meters.
• Energy Efficiency and Durability
Compared to traditional AC water pumps, this system offers energy savings of 30–50%. The pump body is typically constructed from stainless steel and features an IP68 protection rating, enabling it to operate stably over long periods-even in harsh water conditions.
scope of Application
• Irrigation: Drip irrigation & sprinkler systems for crops (cotton, wheat, corn, fruits, vegetables).
• Livestock Watering: Remote pastures & ranches.
• Domestic Supply: Rural villages, mountain cabins, island fresh water supply.
• Industrial: Remote construction sites, mine dewatering, desert control projects.
Application Scenarios
FAQ
How many watts does it take to run a deep well pump?
The wattage needed for a solar deep well pump depends mainly on your well depth and desired flow rate. Typical pumps range from 750W for shallow wells (under 30m) up to 7,500W for wells deeper than 150m. As a rule of thumb, a 1,500W pump can lift about 3-5 tons per hour from 50m depth, while a 3,000W pump handles 100m depth. Contact us with your well depth for a free sizing recommendation.
