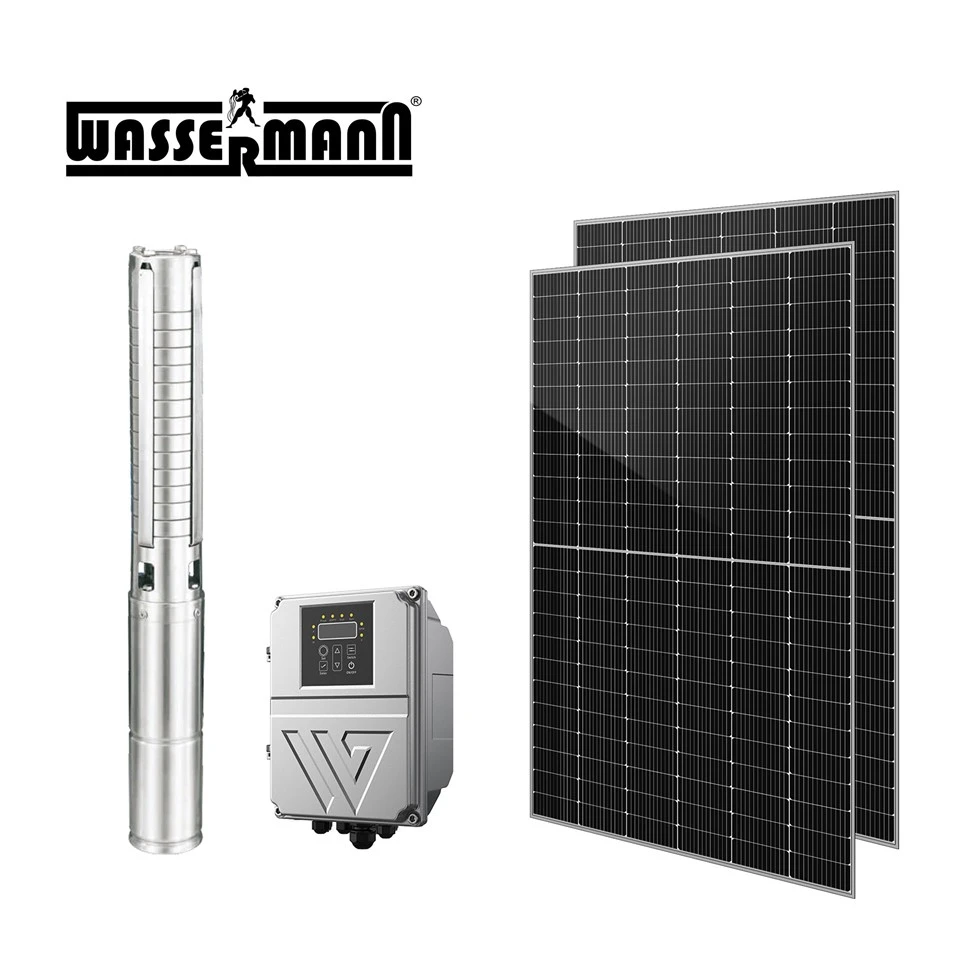

Product Introduction
An AC solar water pump is an off-grid water supply system powered by solar energy that utilizes an AC motor to drive the pump. Its core operating principle is as follows: solar panels convert light energy into DC electricity; a solar water pump inverter then converts this DC electricity into AC electricity, which is used to drive a standard three-phase AC water pump. The inverter features built-in MPPT technology, enabling it to adjust the output frequency in real-time based on light intensity, thereby maximizing solar energy utilization-even under overcast or cloudy conditions.
4BSSC-A/D Performance Data
|
No. |
Pump |
Controller |
Solar Panels |
||||||
|
WASSERMANN CODE |
Q.max (m³/h) |
Motor power (HP) |
Outlet |
Stages |
Drive Type |
Power(KW) |
VOC Range (V) |
||
|
45 |
4BSSC5.0-150-152-1100-A/D |
5 |
1.5 |
1.5" |
14 |
Built-in AC/DC |
1.1 |
22-200V |
|
|
46 |
4BSSC5.2-175-228-1500-A/D |
5.2 |
2.2 |
1.5" |
18 |
Built-in AC/DC |
1.5 |
45-430V |
|
|
47 |
4BSSC5.2-240-304-2200-A/D |
5.2 |
3 |
1.5" |
25 |
Built-in AC/DC |
2.2 |
45-430V |
|
|
48 |
4BSSC10-80-152-1100-A/D |
10 |
1.5 |
1.5" |
58 |
Built-in AC/DC |
1.1 |
22-200V |
|
|
49 |
4BSSC10-140-228-1500-A/D |
10 |
2.2 |
1.5" |
6 |
Built-in AC/DC |
1.5 |
45-430V |
|
|
50 |
4BSSC10-200-304-2200-A/D |
10 |
3 |
1.5" |
15 |
Built-in AC/DC |
2.2 |
45-430V |
|
|
51 |
4BSSC17-80-228-1500-A/D |
17 |
2.2 |
1.5" |
7 |
Built-in AC/DC |
1.5 |
45-430V |
|
|
52 |
4BSSC17-100-304-2200-A/D |
17 |
3 |
1.5" |
9 |
Built-in AC/DC |
2.2 |
45-430V |
|
|
53 |
4BSSC21-60-304-2200-A/D |
21 |
3 |
1.5" |
5 |
Built-in AC/DC |
2.2 |
45-430V |
|
Free Accessories
Packaging
Features
• Fully solar-powered, utilizing high-efficiency monocrystalline silicon solar panels to convert light energy into electrical energy to directly power the water pump for stable operation.
• Intelligent pressure management system automatically adjusts pump speed to maintain constant water pressure, with an adjustable pressure range to suit different household needs.
• Complies with EU CE certification standards.
Advantages
• Wide Power Range
AC pumps overcome DC power limitations, making them ideal for large-scale applications like agricultural irrigation and desert reclamation that require high flow and high lift.
• High Compatibility
As the universal standard, AC pumps pair with inverters to enable dual-power input (solar + grid/generator), automatically switching to backup power at night or on cloudy days for uninterrupted 24/7 water supply.
• No Batteries Required
Using a "store water, not electricity" approach, the system pumps into elevated tanks-eliminating expensive batteries and significantly reducing initial and maintenance costs.
Application Scenarios
FAQ
How far will a solar pump push water?
The pumping distance of a solar-powered pump depends on two key factors: vertical lift and horizontal conveyance distance. Generally, due to frictional losses within the piping, the resistance encountered over every 10 meters of horizontal pipe is roughly equivalent to that of a 1-meter vertical lift. A typical residential solar pump (1–2 horsepower) can vertically lift water between 30 and 80 meters, while horizontally conveying it over a distance of 300 to 800 meters. High-power pumps (exceeding 5 horsepower) are capable of achieving a vertical lift of over 200 meters. Actual performance is also influenced by various factors, including the specific type of pump, pipe diameter, flow rate, and prevailing sunlight conditions.Please feel free to share your specific water requirements with us, and we will assist you in selecting the most suitable solar pump for your needs.
